The OCPC OCMB-B450M motherboards are ready to support thwe latest AMD Ryzen™ 5000 Series Processors and are backwards compatible with AMD Ryzen™ 4000, 3000, 2000 and 1000 Series Processors.
OCPC motherboards are perfect for gamers/users looking to build the most cost effective with high performance AMD systems.

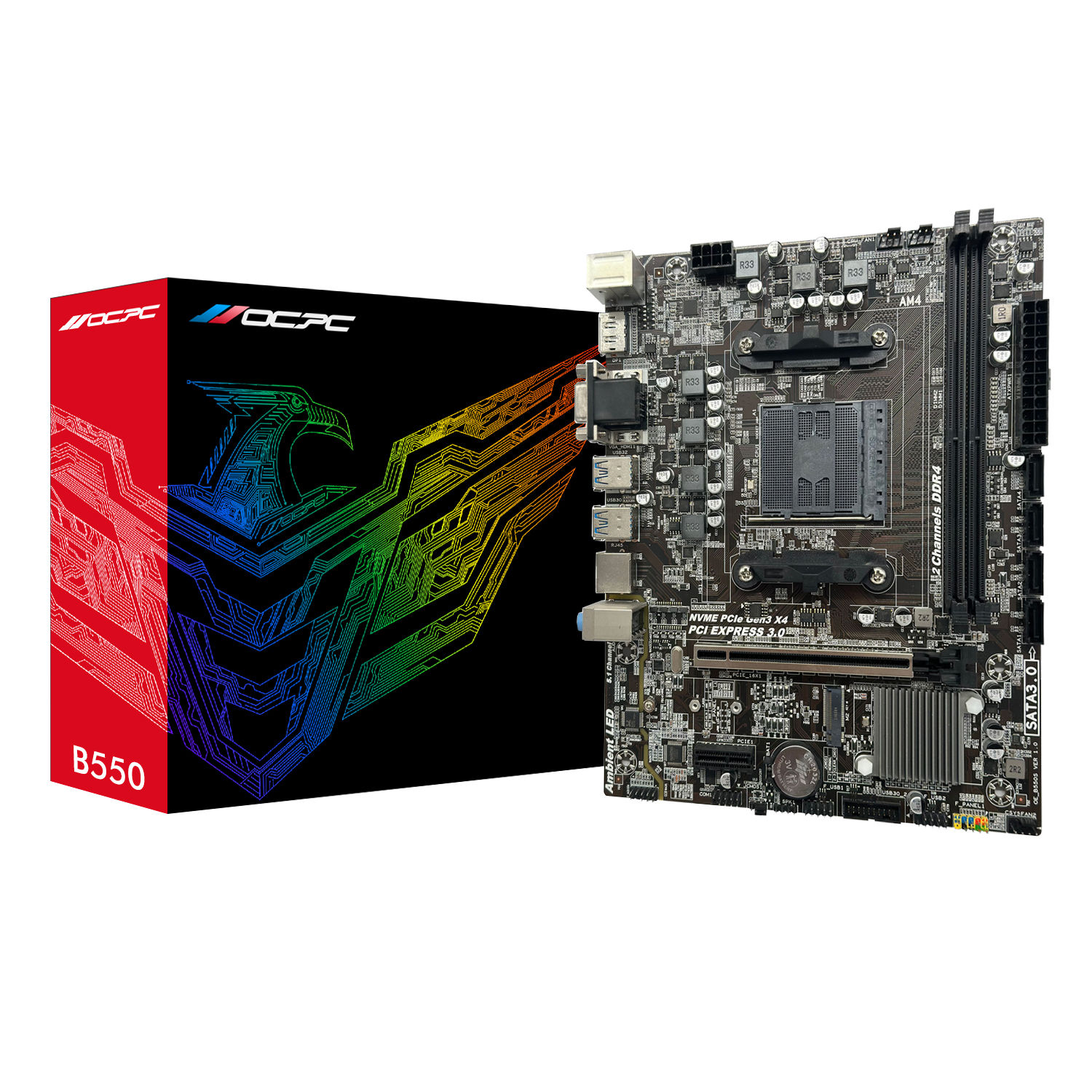

OCPC B550M M-ATX MOTHERBOARD
Artikelnummer: OCMBB550
Model
OCMBB550
Chipset
AMD AM4, AMD 3rd/4th/5th generation compatible with AMD Ryzen™ 3000, 4000, 4000G, 5000, 5000G
CPU Socket
B550
Memory Support
Support 2* DDR4 Desktop Memory
Dimm
2x DDR4 Slots (Max. up to 64GB,32GB/DIMM, 3600MHZ Frequency)
GPU
integrated
I/O interface
- 1*HDMI, 1*VGA, 1*Display Port
- 4*USB 3.0
- 1*RJ45 100Mbps
- 1* 3 in 1 Audio port (Line in/Line out/Mic in) Realtek HD Audio chipset
Onboard interface
- 4*SATA 3.0
- 1*M.2 (Support NGFF/NVME)
- 1*PCIE 1x, 1*PCIE 16x
- 2*USB2.0 pin,1*USB3.0 pin
- 1*Audio
- 1*COM232
- 1*CPU FAN
Power Connector
- 1*24pin ATX PWR
- 1*4pin 12V power connector
Size
Micro ATX 18*22.5cm
